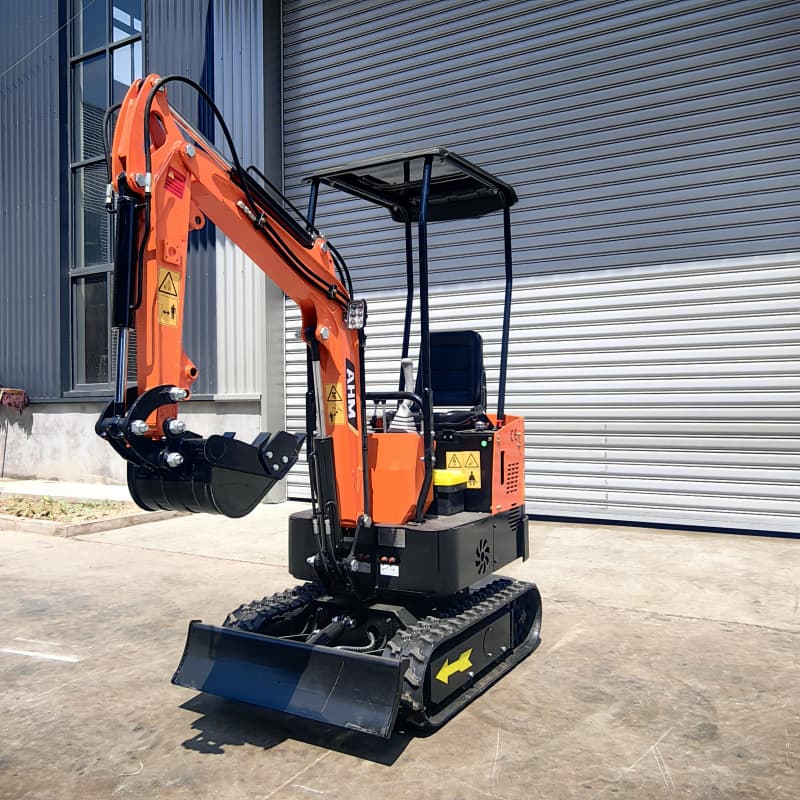

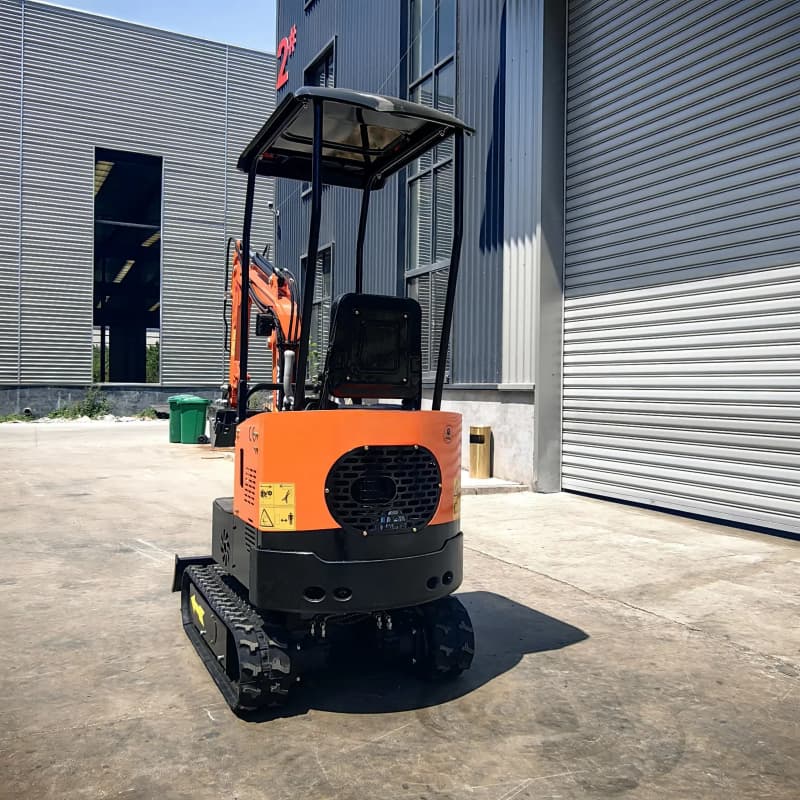

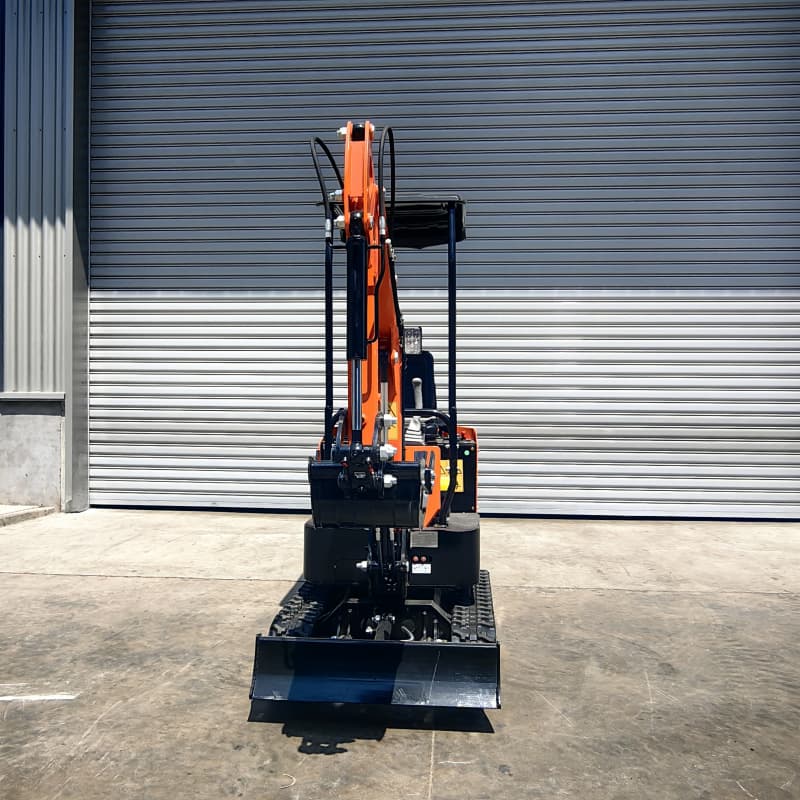

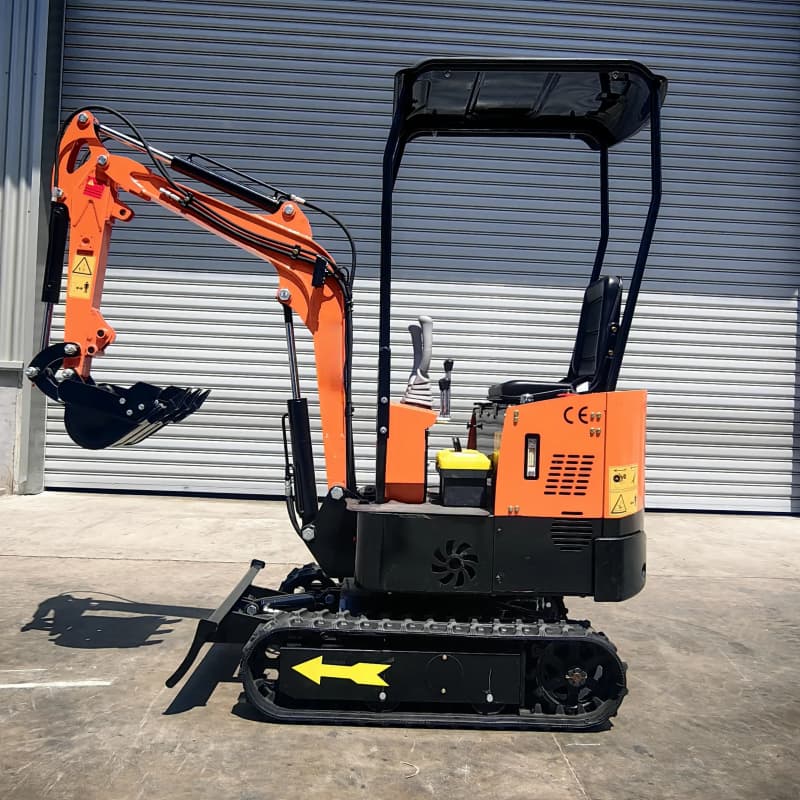

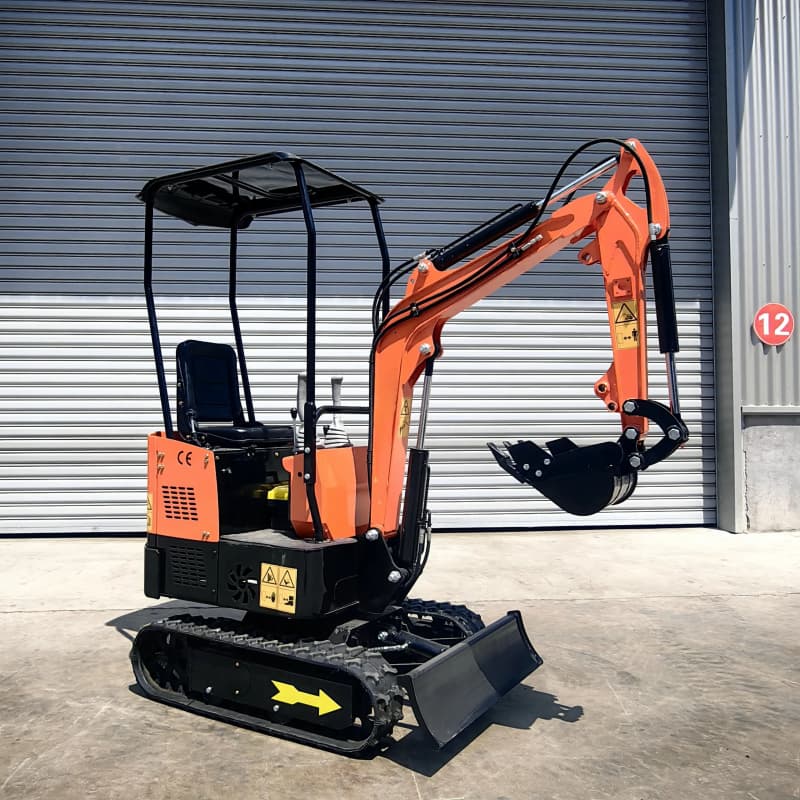

1 Ton Garden Excavator

A 1-ton crawler excavator is a small and compact piece of heavy equipment designed for digging, lifting, and moving materials. Crawler excavators are typically equipped with continuous tracks (rather than wheels) that allow for better stability and mobility over rough or uneven terrain.

Contact Now Telephone WhatsApp

Product Details

Here are some key features of a 1-ton crawler excavator:

1.Size and Weight:

A 1-ton crawler excavator typically weighs around 1,000 kg (about 2,200 lbs), making it one of the smallest excavators in its class. This lightweight design allows for excellent maneuverability in tight spaces.

2.Applications:

Landscaping: Excavating small areas, digging trenches, or clearing debris.

Construction: Useful for small-scale digging, such as in foundation preparation, trenching, or utility installation.

Demolition: Can be used for light demolition work, including breaking up small concrete or brick structures.

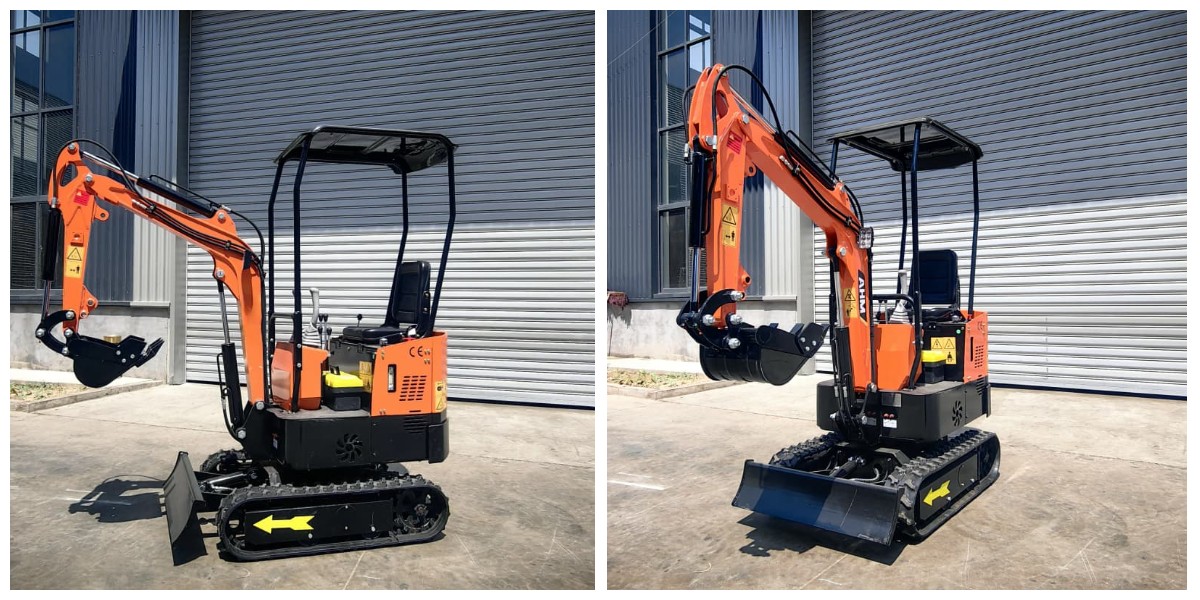

1 Ton Garden Excavator

Product Information
Net weight (kg)	850
Gross weight with wooden box (kg)	950
Running weight (kg)	970
Maximum load (kg)	120
Color	Orange + Black
Maximum traveling speed (km/h)	3
Slewing speed (rpm)	11
Fuel tank capacity (L)	6.6
Hydraulic oil tank capacity (L)	12.7
Fuel consumption (L/h)	1L/h
Side Swing Angle	No function
Chassis telescopic function	Without this function
Awning way	Four-legged shed

Engine
Engine Model	Paragon Single Cylinder 25T2
Engine power (hp)	13.5hp
Rated speed (rpm)	3060
Engine type	Air-cooled four-stroke, OHV
Displacement (CC)	420
Engine Cylinder Form	Single-cylinder, cast iron cylinder liner
Engine Bore (mm)	90
Engine Stroke (mm)	66
Engine oil capacity (L)	1.1
Engine net weight (kg)	31
Rated torque (N.m)	28.5@3060RPM
Fuel type	Gasoline 95# and above
Oil type	10-30 (W)
Cooling type	Air-cooled
Emission standard	EPA
Control System
Controls	Front Mechanical
Chronographs	Yes
Voltmeter	No
Battery Voltage (V)	12
Battery Capacity (AH)	45
Battery Size (mm)	224117175
Battery Weight (kg)	12
Maximum starting current (A)	380
Main Pump
Main Pump Model	PGP5106GLP
Main pump type	Single Gear Pumps
Rated pressure of main pump (Mpa)	18
Maximum pressure of main pump (Mpa)	25
Nominal flow rate of main pump (ml/r)	6
Hydraulic oil type	46#Anti-wear hydraulic oil
Main pump flow rate (L/min)	18L/min

Power and Performance:

These excavators usually have engines with power ratings in the range of 10-20 horsepower, which provide enough force for light digging tasks.

They can typically lift and dig to a limited depth compared to larger excavators but are quite efficient for small-scale operations.

Airframe Configuration
Roof form	four-legged shed
Cabin heat insulation foam	/
Boom hydraulic pipe routing	Outer alignment
Boom cylinder mounting position	Lower side of the big arm positively fitted
Fuel filling position	Under Seat
Hydraulic oil filling position	Seat Left
Cabin door opening method	Flip the seat forward
Chassis hook	/
Throttle valve	Without throttle, throttle mounting holes reserved
Seat armrests	With armrests
Seat belts	with
Anti-slip feet	with
Rubber skid cover for operating rod	Digging lever
Material of hydraulic pipe of big arm	Hose
Hydraulic Oil Heat Dissipation	Without hydraulic oil radiator
Engine cooling	Air Cooled

Adaptability of aids
Attachment link shaft diameter (mm)	25
Width of small arm end (mm)	90
Specification of reserved hydraulic connector	M16 male thread
Number of reserved hydraulic joints	2
Thumb Clamp Adaptation Form	Top Single Hole Styles
Outer width of mounting on the thumb clamp of small arm (mm)	47
Thumb clamp upper mounting hole opening distance (mm)	47
Small arm thumb clamp lower mounting hole width (mm)	90
Diameter of small arm thumb clamp hole (mm)	25.5

FAQ:

Q:What's your delivery time?
A:It is 10-30 days after receipt of the advance payment.

Q:What about the warranty time?
A:One year or 2000 hours, whichever occurs first.
Q:What kind of payment terms can be accepted?
A:T/T, or L/C at sight can be accepted.
Q:What kind of international certificates are available for excavators?

A:For the certificates, we have CE, ISO, EPA.
Q:What about the Minimum Order Quantity?
A:The MOQ is 1 unit.
