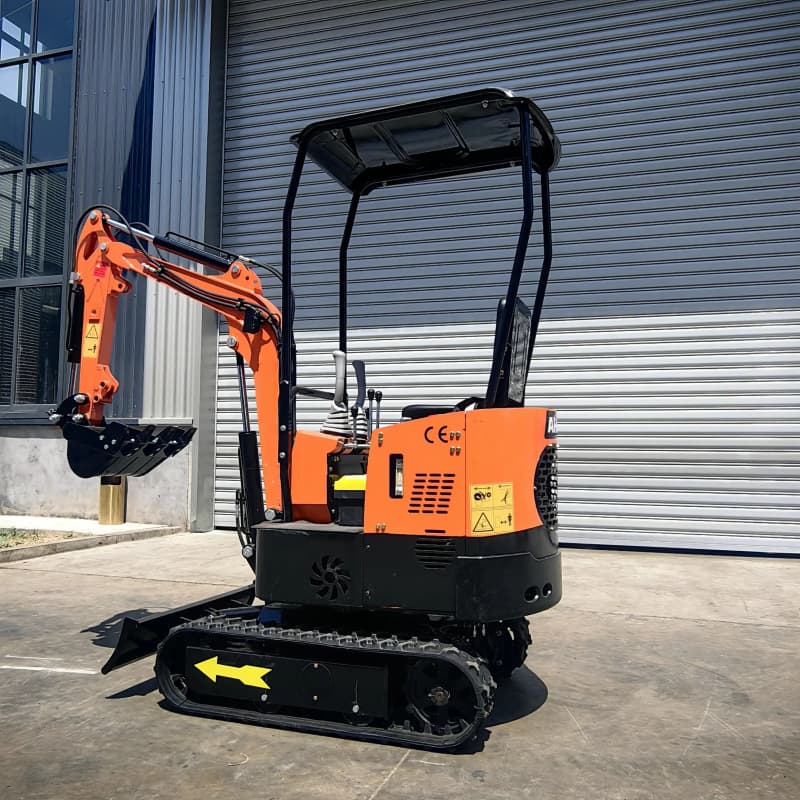

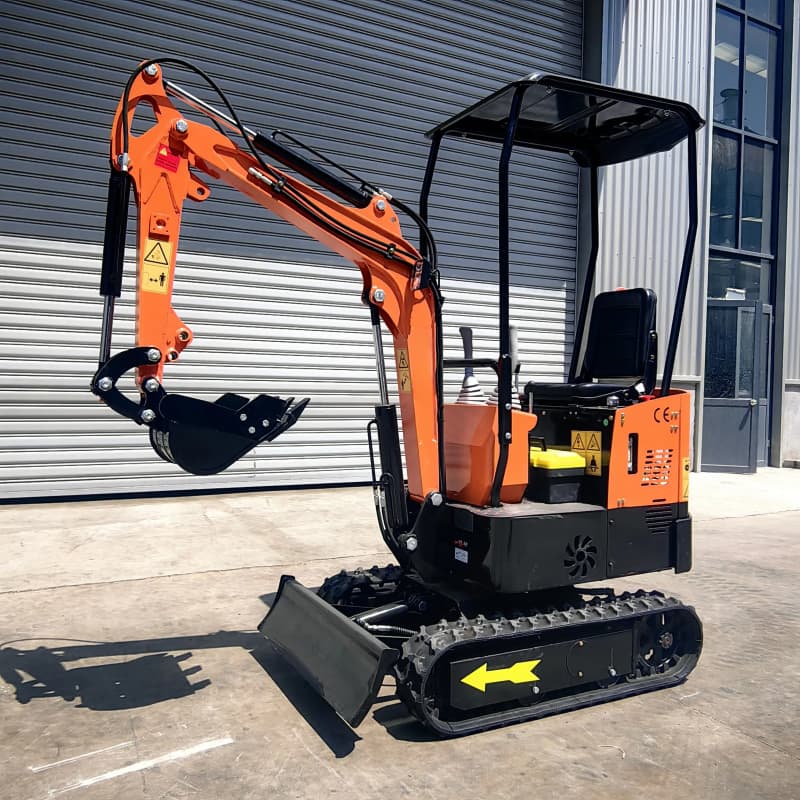

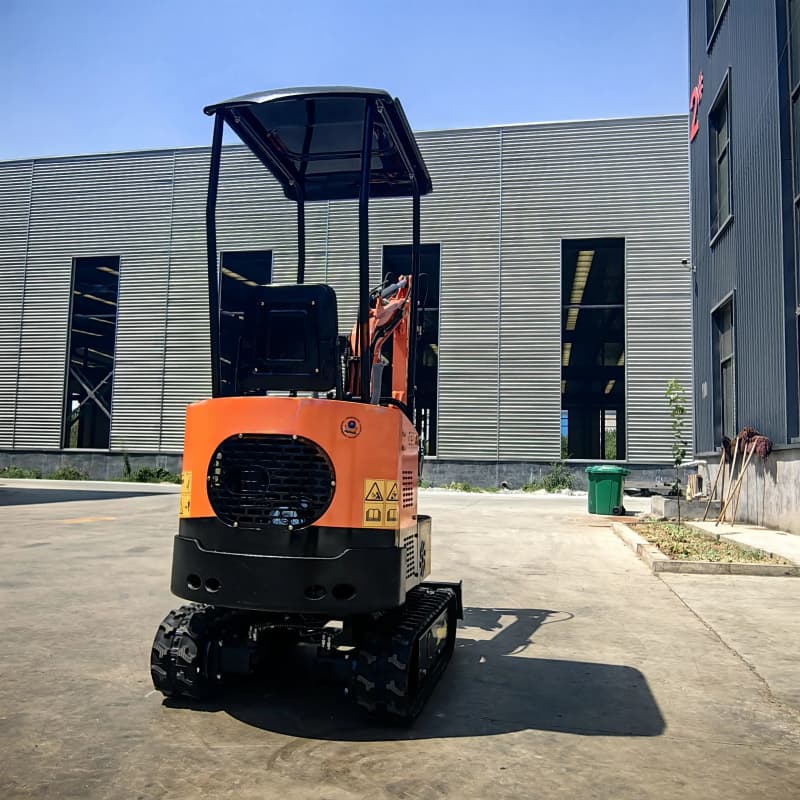

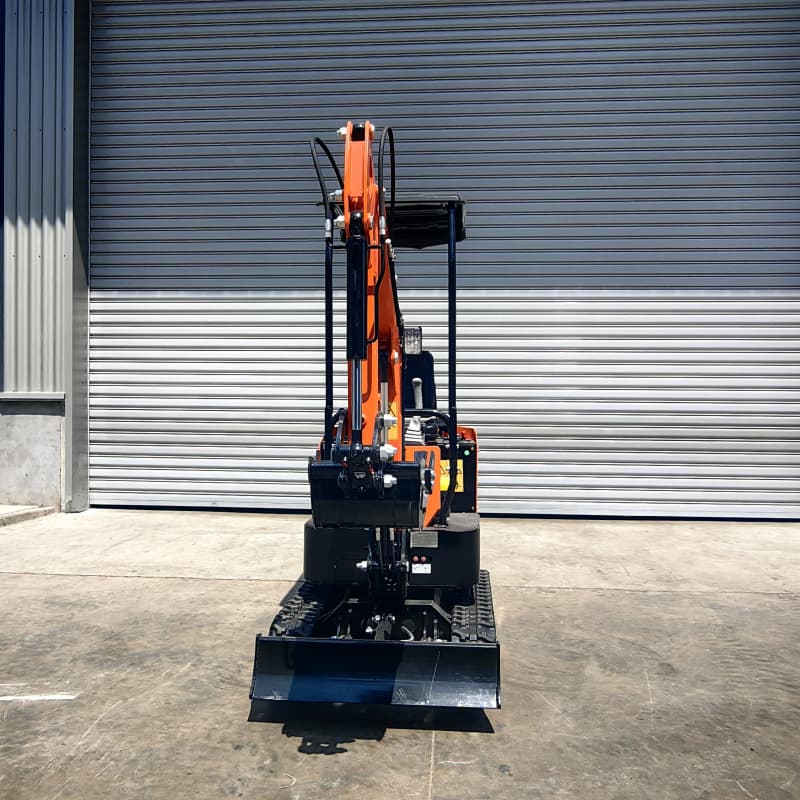

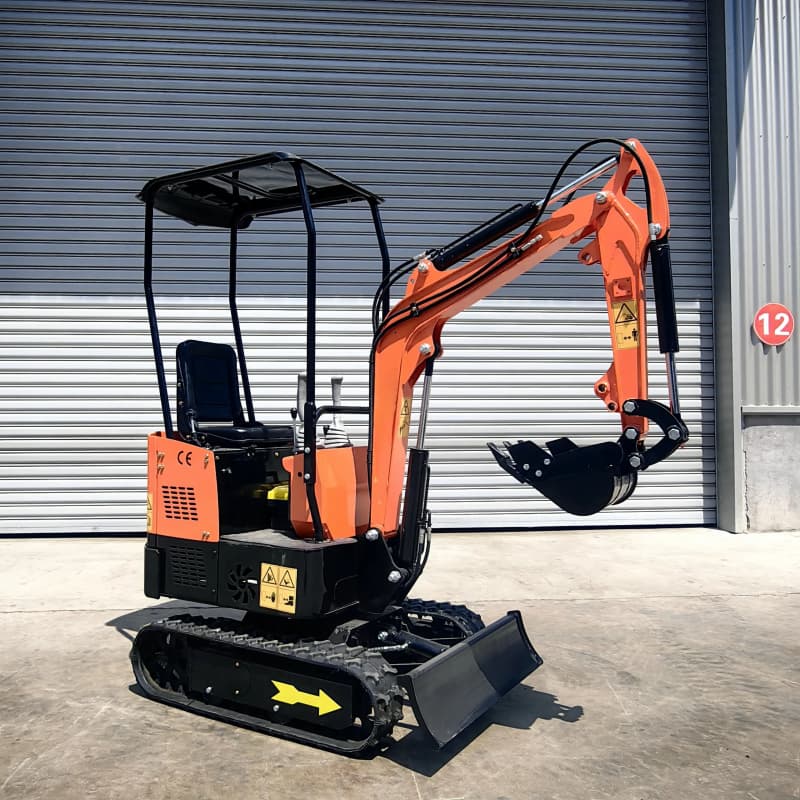

1 Ton Hydraulic Crawler Excavator
Rotational Capability: Many crawler excavators feature a 360-degree rotational upper structure, allowing them to work efficiently in tight spaces without needing to reposition their base.Attachments Versatility: Crawler excavators can be fitted with various attachments, such as buckets, claws, and breakers, to perform different tasks. This flexibility makes them ideal for diverse applications, from excavating trenches to breaking up concrete.
1 Ton Hydraulic Crawler Excavator Operator Comfort: Modern crawler excavators come with advanced cab designs that provide comfort and ease of operation. Features often include air conditioning, ergonomic seating, and intuitive controls for better operator efficiency.
Product Information | |
Net weight (kg) | 850 |
Gross weight with wooden box (kg) | 950 |
Running weight (kg) | 970 |
Maximum load (kg) | 120 |
Color | Orange + Black |
Maximum traveling speed (km/h) | 3 |
Slewing speed (rpm) | 11 |
Fuel tank capacity (L) | 6.6 |
Hydraulic oil tank capacity (L) | 12.7 |
Fuel consumption (L/h) | 1L/h |
Side Swing Angle | No function |
Chassis telescopic function | Without this function |
Awning way | Four-legged shed |
Applications1. Construction: Crawler excavators are commonly used in construction for digging foundations, trenching for utilities, and demolition tasks. Their ability to manage heavy loads makes them essential on job sites.2. Mining: In the mining industry, these excavators are crucial for stripping overburden, digging out ore, and loading materials onto dump trucks.3. Landscaping: Crawler excavators can be employed in landscaping projects, where they assist in shaping land, creating ponds, and moving large rocks.4. Urban Development: For urban construction projects, crawler excavators can help in site preparation and material handling where space is restricted.
Engine | |
Engine Model | Paragon Single Cylinder 25T2 |
Engine power (hp) | 13.5hp |
Rated speed (rpm) | 3060 |
Engine type | Air-cooled four-stroke, OHV |
Displacement (CC) | 420 |
Engine Cylinder Form | Single-cylinder, cast iron cylinder liner |
Engine Bore (mm) | 90 |
Engine Stroke (mm) | 66 |
Engine oil capacity (L) | 1.1 |
Engine net weight (kg) | 31 |
Rated torque (N.m) | 28.5@3060RPM |
Fuel type | Gasoline 95# and above |
Oil type | 10-30 (W) |
Cooling type | Air-cooled |
Emission standard | EPA |
Control system | |
Controls | Front Mechanical |
Chronographs | Yes |
Voltmeter | No |
Battery Voltage (V) | 12 |
Battery Capacity (AH) | 45 |
Battery Size (mm) | 224*117*175 |
Battery Weight (kg) | 12 |
Maximum starting current (A) | 380 |
main pump | |
Main Pump Model | PGP5106GLP |
Main pump type | Single Gear Pumps |
Rated pressure of main pump (Mpa) | 18 |
Maximum pressure of main pump (Mpa) | 25 |
Nominal flow rate of main pump (ml/r) | 6 |
Hydraulic oil type | 46#Anti-wear hydraulic oil |
Main pump flow rate (L/min) | 18L/min |
Airframe Configuration | |
Roof form | four-legged shed |
Cabin heat insulation foam | / |
Boom hydraulic pipe routing | Outer alignment |
Boom cylinder mounting position | Lower side of the big arm positively fitted |
Fuel filling position | Under Seat |
Hydraulic oil filling position | Seat Left |
Cabin door opening method | Flip the seat forward |
Chassis hook | / |
Throttle valve | Without throttle, throttle mounting holes reserved |
Seat armrests | With armrests |
Seat belts | with |
Anti-slip feet | with |
Rubber skid cover for operating rod | Digging lever |
Material of hydraulic pipe of big arm | Hose |
Hydraulic Oil Heat Dissipation | Without hydraulic oil radiator |
Engine cooling | Air Cooled |
Investing in a crawler excavator means investing in reliability and efficiency. Its robust design, coupled with advanced features, ensures that you can handle any project with confidence. With the ability to maneuver through challenging landscapes and tackle heavy workloads, the crawler excavator is a favorite among contractors and operators alike.
Adaptability of aids | |
Attachment link shaft diameter (mm) | 25 |
Width of small arm end (mm) | 90 |
Specification of reserved hydraulic connector | M16 male thread |
Number of reserved hydraulic joints | 2 |
Thumb Clamp Adaptation Form | Top Single Hole Styles |
Outer width of mounting on the thumb clamp of small arm (mm) | 47 |
Thumb clamp upper mounting hole opening distance (mm) | 47 |
Small arm thumb clamp lower mounting hole width (mm) | 90 |
Diameter of small arm thumb clamp hole (mm) | 25.5 |
Harness the power of the crawler excavator for your next project and experience the difference in performance and productivity. Round out your fleet with this essential machine, and watch your capabilities expand.
