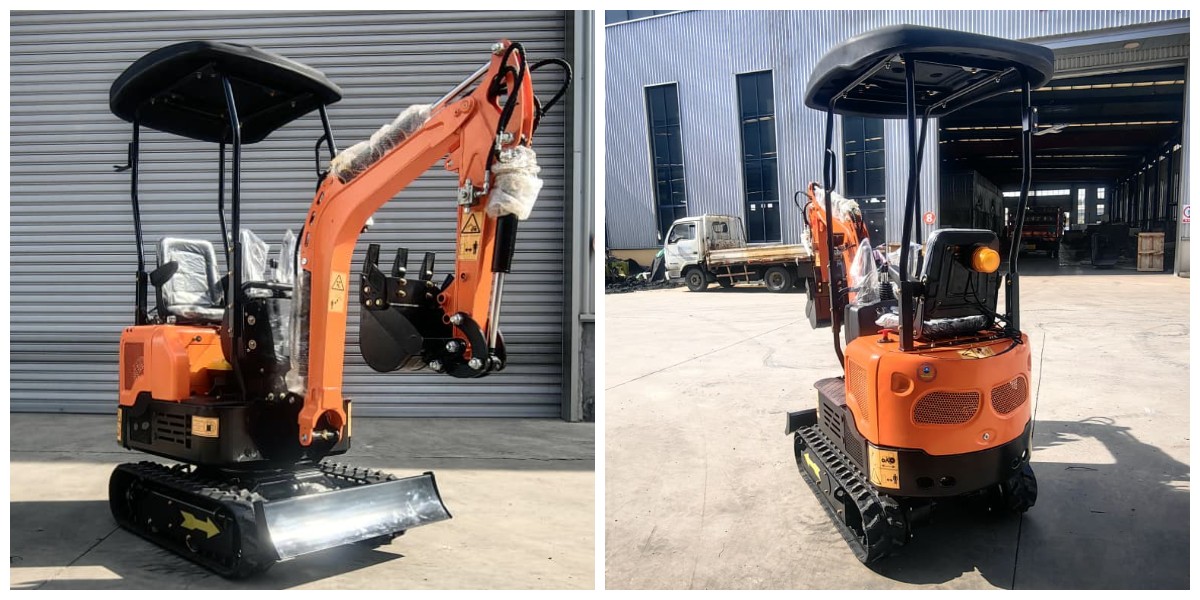

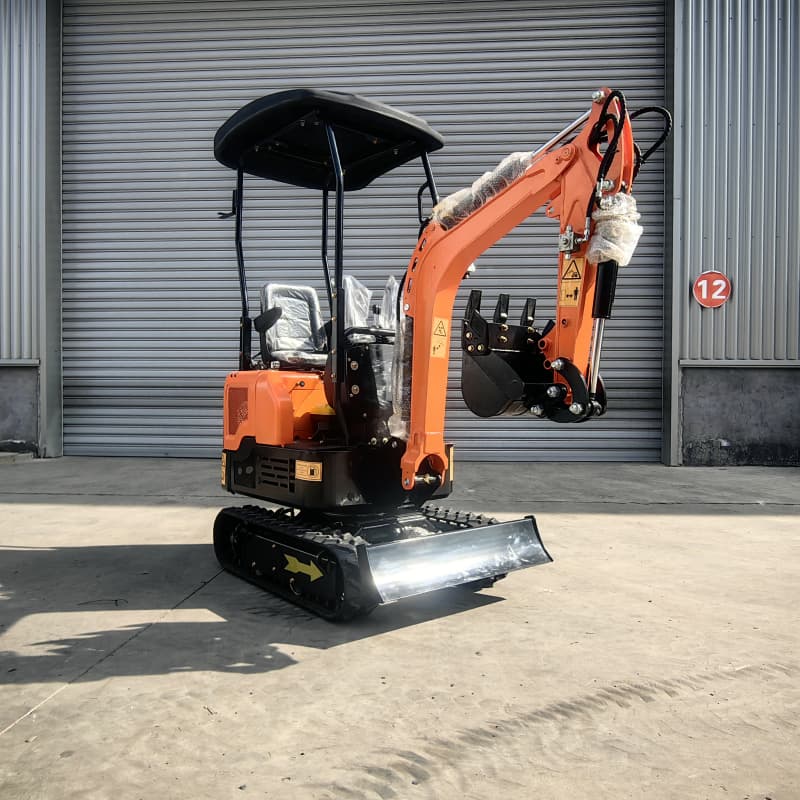

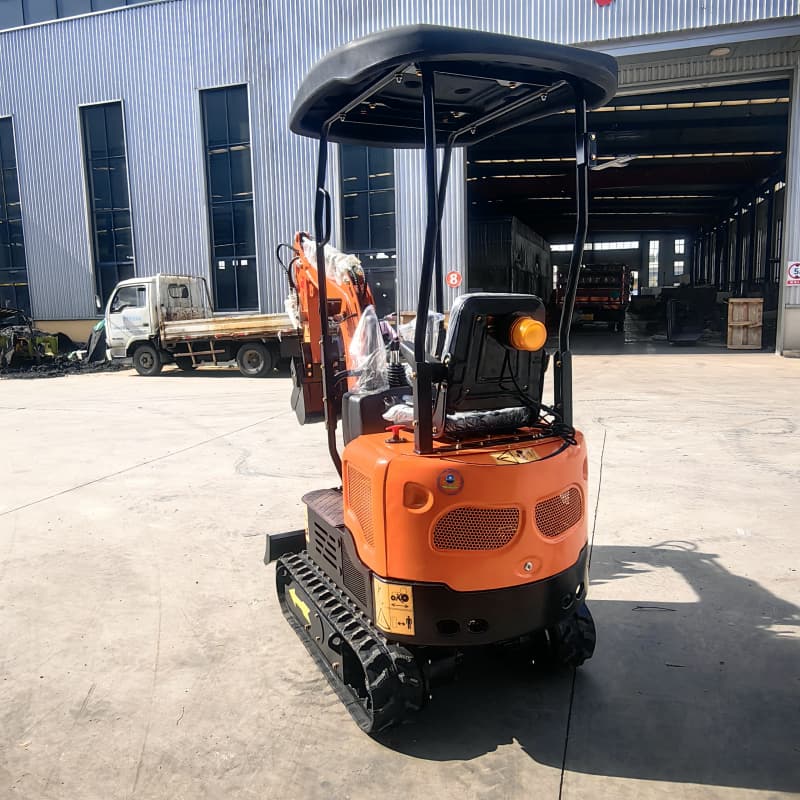

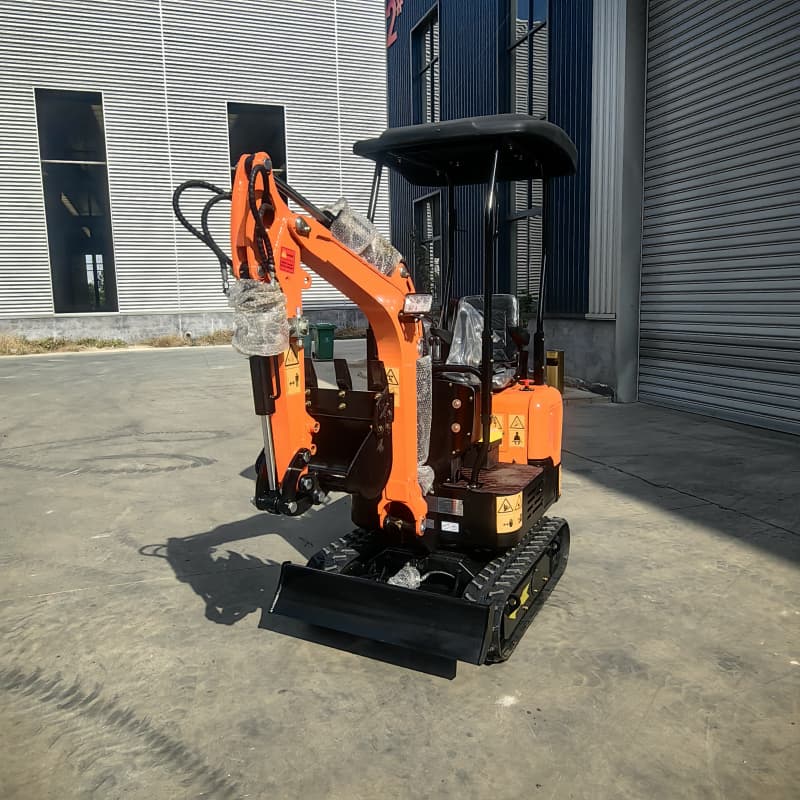

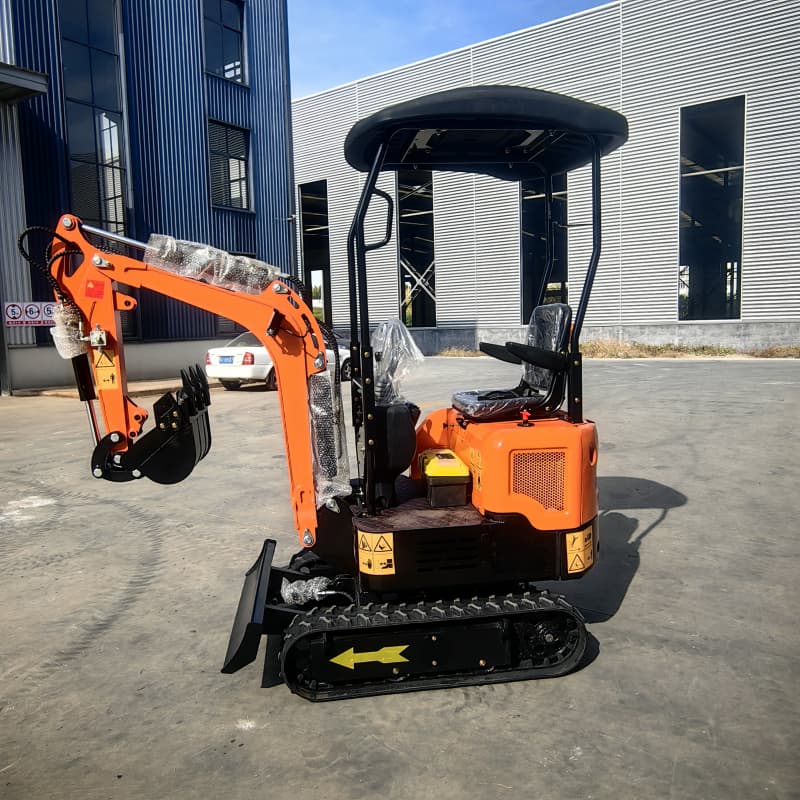

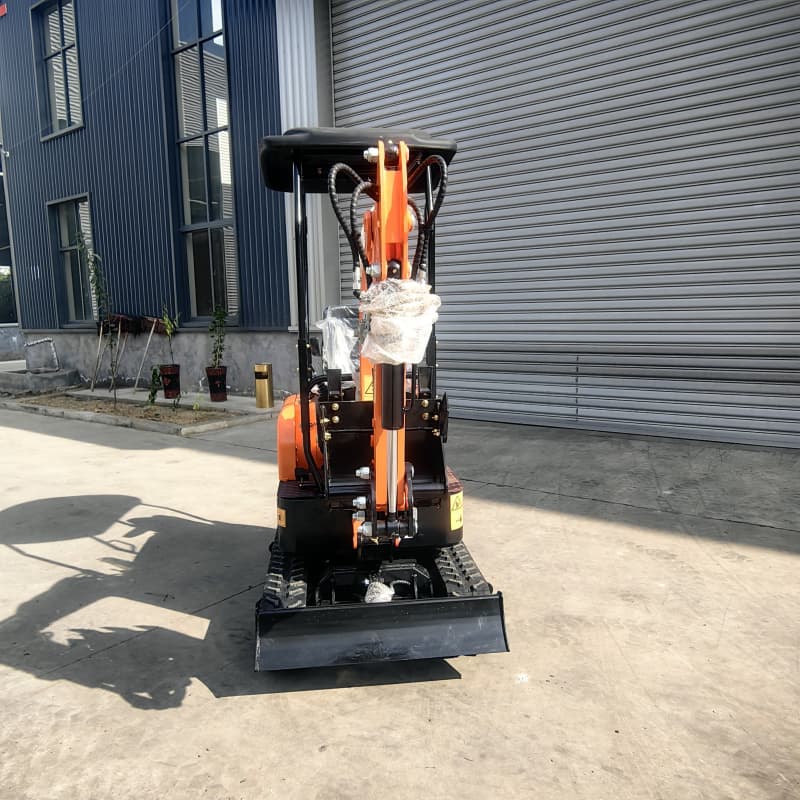

1.5 Ton Mini Excavator

A 1.5-ton crawler excavator is a compact yet powerful piece of construction machinery, offering a balance between lightweight maneuverability and the digging power needed for small to medium-sized excavation tasks. This size is ideal for projects in tight spaces, residential areas, landscaping, and light construction.

Contact Now Telephone WhatsApp

Product Details

1.5 Ton Mini Excavator Compact Size and Weight:

Weight: Typically between 1.5 tons (1,500 kg or ~3,300 lbs). This makes the 1.5-ton excavator slightly heavier than the 1-ton mini excavator but still highly portable.
Dimensions: The small dimensions make it ideal for working in restricted areas like backyards, narrow streets, or indoor spaces.

Packaging
Wooden box size (mm)	298010901600mm
Packing method	Wooden box
20GP
40GP

Product Information
Net weight (kg)	900
Gross weight with wooden box (kg)	1070
Running weight (kg)	1000
Maximum load (kg)	120
Color	Orange + Black
Maximum traveling speed (km/h)	3
Slewing speed (rpm)	11
Fuel tank capacity (L)	6.6
Hydraulic oil tank capacity (L)	12.7
Fuel consumption (L/h)	1L/h
Side Swing Angle	No function
Chassis telescopic function	Without this function
Awning way	Four-legged shed

Improved Traction and Stability: Crawler tracks provide excellent stability, especially on soft, uneven, or muddy ground. The tracks also help distribute the machine’s weight, minimizing ground pressure and reducing the risk of damaging sensitive surfaces like lawns or driveways.

Engine
Engine Model	Paragon Single Cylinder 25T2
Engine power (hp)	13.5hp
Rated speed (rpm)	3060
Engine type	Air-cooled four-stroke, OHV
Displacement (CC)	420
Engine Cylinder Form	Single-cylinder, cast iron cylinder liner
Engine Bore (mm)	90
Engine Stroke (mm)	66
Engine oil capacity (L)	1.1
Engine net weight (kg)	31
Rated torque (N.m)	28.5@3060RPM
Fuel type	Gasoline 95# and above
Oil type	10-30 (W)
Cooling type	Air-cooled
Emission standard	EPA
Control system
Controls	Front Mechanical
Chronographs	Yes
Voltmeter	No
Battery Voltage (V)	12
Battery Capacity (AH)	45
Battery Size (mm)	224117175
Battery Weight (kg)	12
Maximum starting current (A)	380
main pump
Main Pump Model	PGP5106GLP
Main pump type	Single Gear Pumps
Rated pressure of main pump (Mpa)	18
Maximum pressure of main pump (Mpa)	25
Nominal flow rate of main pump (ml/r)	6
Hydraulic oil type	46#Anti-wear hydraulic oil
Main pump flow rate (L/min)	18L/min

Better Maneuverability: Crawler systems allow the machine to turn 360 degrees in place, offering precision and control when working in confined spaces.

walking system
Model	BM6-310
Type	Cycloid motor
Gear	First gear
Function of oil unloading	No
Track material	Rubber
Track width (mm)	180
Number of supporting wheels	2

Airframe Configuration
Roof form	four-legged shed
Cabin heat insulation foam	/
Boom hydraulic pipe routing	Outer alignment
Boom cylinder mounting position	Lower side of the big arm positively fitted
Fuel filling position	Under Seat
Hydraulic oil filling position	Seat Left
Cabin door opening method	Flip the seat forward
Chassis hook	/
Throttle valve	Without throttle, throttle mounting holes reserved
Seat armrests	With armrests
Seat belts	with
Anti-slip feet	with
Rubber skid cover for operating rod	Digging lever
Material of hydraulic pipe of big arm	Hose
Hydraulic Oil Heat Dissipation	Without hydraulic oil radiator
Engine cooling	Air Cooled

Adaptability of aids
Attachment link shaft diameter (mm)	25
Width of small arm end (mm)	90
Specification of reserved hydraulic connector	M16 male thread
Number of reserved hydraulic joints	2
Thumb Clamp Adaptation Form	Top Single Hole Styles
Outer width of mounting on the thumb clamp of small arm (mm)	47
Thumb clamp upper mounting hole opening distance (mm)	47
Small arm thumb clamp lower mounting hole width (mm)	90
Diameter of small arm thumb clamp hole (mm)	25.5

Precise Control: A 1.5-ton excavator typically has a hydraulic system that powers the boom, arm, and bucket. The hydraulic system allows for fine-tuned movements, making the machine suitable for detailed work such as trenching, foundation digging, or landscaping.

Vehicle Specifications
Maximum length (mm)	4000
Transportation length (mm)	2980
Overall width (mm)	940
Overall track width (mm)	930
Overall height cab top (mm)	2270
Track distance (mm)	750
Track length to ground (mm)	885
Track Length (mm)	1230
Standard (single) track width (mm)	180
Swivel platform ground clearance (mm)	410
Minimum ground clearance (mm)	98
Minimum turning radius (mm)	1505
Standard bucket volume (m3)	0.025
Standard bucket width (mm)	400

Working Size
Maximum digging force of bucket (KN)	11.5
Maximum load (kg)	120
Maximum digging depth (mm)	1750
Maximum vertical digging depth (mm)	1550
Maximum digging height (mm)	2400
Maximum unloading height (mm)	1590
Maximum digging radius (mm)	3050
Climbing capacity (°)	30
Maximum height of bulldozer (mm)	320
Maximum depth of bulldozer (mm)	200

Lifting and Digging: While the machine's lifting capacity and digging depth are not as high as larger excavators, it still offers good performance for small to medium-scale excavation tasks.
