2 Ton Hydraulic Crawler Dump Truck

Joystick Controls: Many 2-ton mini-excavators feature ergonomic joystick controls for the boom, arm, bucket, and tracks, providing precise control over movements. These are easy to use, even for operators with limited experience.

Comfortable Cabin: Operators benefit from a comfortable cabin or open operator’s station, often with adjustable seating, air conditioning, and a clear line of sight for efficient operation.

Contact Now Telephone WhatsApp

Product Details

Reduced Noise and Vibration: 2 Ton Hydraulic Crawler Dump Truck are often designed with noise-reducing features, making them more comfortable for extended use, especially in residential or noise-sensitive areas.

2 Ton Hydraulic Crawler Dump Truck

Attachments:

2-ton mini excavators can be fitted with a wide variety of attachments, increasing their versatility for different tasks:

Buckets: Standard, trenching, and grading buckets.
Hydraulic Breakers: For light demolition, such as breaking concrete or asphalt.
Augers: For drilling holes for posts or foundations.

Packaging
Packaging	Wooden box
Net weight of product(kg)	1400kg
Gross weight with wooden case (kg) Wooden case weight 150kg	1550kg
Running weight (kg) (net weight + load)	1480kg

Product Information
Product net weight (kg)	1400kg
Maximum load (kg)	120
Color	Orange + Black
Maximum traveling speed (km/h)	2.5-3
Rated slewing speed (rpm)	8-14
Fuel tank capacity (L)	19
Hydraulic oil tank capacity (L)	16.5
Fuel consumption (L/h)	1L/h
Side Swing Angle	Yes
Chassis telescopic function	No such function
Sunshade way	Four-legged shed

Grapples: For lifting and handling logs, debris, or rocks.
Rippers: For breaking hard or compacted soil.
Tilt Buckets: For more efficient grading and trenching.

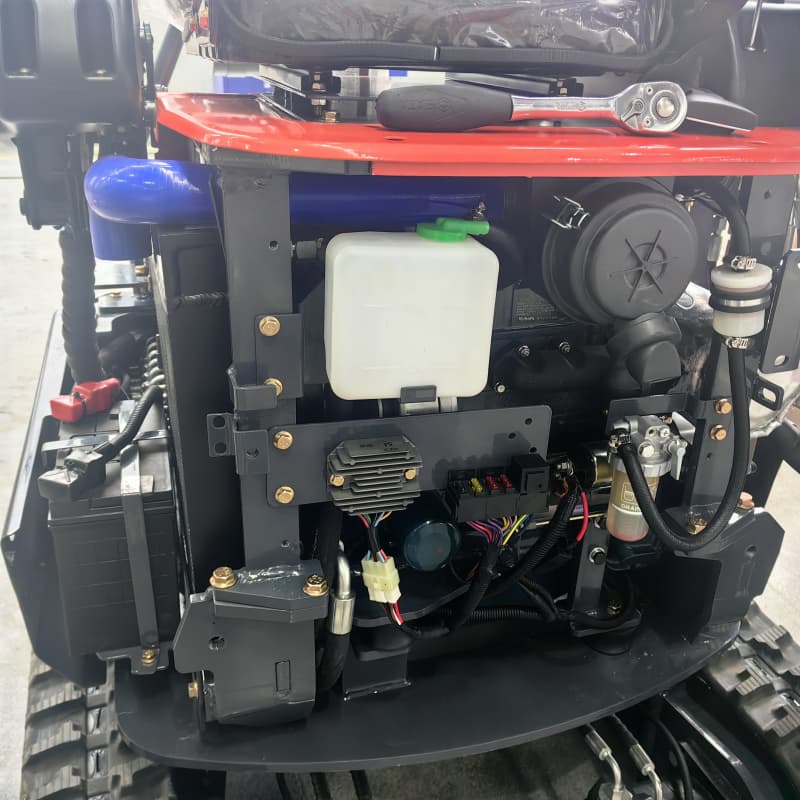

Engine
Engine Model	Kubota D722
Engine power (hp)	13.8hp
Rated speed (rpm)	2600
Engine type	Water-cooled four-stroke
Displacement (CC)	719
Engine Cylinder Form	Inline three-cylinder
Engine Bore (mm)	67
Engine Stroke (mm)	68
Engine oil capacity (L)	3.8
Engine net weight (kg)	63
Rated torque (N.m)	45@2600rpm
Fuel type	Diesel
Oil type	Refer to engine manual
Cooling type	Water-cooled
Emission standard	EPA

Control system
Controls	Hydraulic pilot type on both sides
Chronographs	Yes
Voltmeter	Yes
Battery Voltage (V)	12
Battery Capacity (AH)	45
Battery Size (mm)	238130200+20 (column height 20)
Battery Weight (kg)	12
Battery Positive Terminal Diameter (mm)	19
Battery Negative Terminal Diameter (mm)	17
Maximum starting current (A)	380

Construction Projects:

Trenching: Ideal for digging trenches for water, gas, electrical lines, and other utilities. Its ability to reach deeper than 1.5-ton models makes it suitable for medium-depth trenching tasks.

Main Pump
Main Pump Model
Main pump type	Duplex Gear Pumps
Rated pressure of main pump (Mpa)	18
Maximum pressure of main pump (Mpa)	25
Nominal flow rate of main pump (ml/r)	10+3
Hydraulic oil type	46#Anti-wear hydraulic oil
Main pump flow rate (L/min)	39L/min@3000rpm
multicircuit valve
Model	8-Link Liquid Control
Rated pressure of main pump (Mpa)	17.5

walking system
Model
Type	Cycloid motor
Gear	First gear
Function of oil unloading	None
Track material	Rubber
Track width (mm)	180
Pitch of track (mm)	72
Number of track sections	41
Number of supporting wheels	2

Airframe Configuration
Roof form	Four-legged shed
Cabin heat insulation foam	Upper engine
Boom hydraulic pipe routing	Internal alignment
Boom cylinder mounting position	Big arm upper side inverted
Fuel filling position	Right side leg
Hydraulic oil filling position	Right side leaning leg
Cabin door opening method	Upper side seat forward
Chassis hook	Without hook
Throttle valve	With throttle
Seat armrests	without armrest
Seat belts	with
Anti-slip feet	with
Rubber skid cover for operating rod	Digging lever
Material of hydraulic pipe of big arm	Hose
Hydraulic Oil Heat Dissipation	with hydraulic oil cooling
Engine cooling	with water cooling

Foundation Digging: Excavating small foundations, footings, or basements in residential or small commercial construction projects.
Site Preparation: Grading, leveling, or clearing small to medium-sized areas for new construction.

Adaptability of aids
Attachment link shaft diameter (mm)	25
Width of small arm end (mm)	90
Specification of reserved hydraulic connector	M16 male thread
Number of reserved hydraulic joints	2
Thumb Clamp Adaptation Form	Upper Single Hole Style
Outer width of mounting on the thumb clamp of small arm (mm)	47
Thumb clamp upper mounting hole opening distance (mm)	27
Small arm thumb clamp lower mounting hole width (mm)	90
Diameter of small arm thumb clamp hole (mm)	25.5

Vehicle Specifications
Maximum length (mm)	4325
Bulldozer width (mm)	1100
Overall width (mm) (both sides of chassis hook)	1100
Overall track width (mm)	1000
Overall height cab top (mm)	2272
Track distance (mm)	920
Track length to ground (mm)	1050
Track Length (mm)	1545
Standard (single) track width (mm)	180
Swivel platform ground clearance (mm)	375
Traveling Minimum Ground Clearance (mm)	98
Minimum turning radius (mm)	1711
Standard bucket volume (m3)	0.025
Standard bucket width (mm)	400

Tree and Stump Removal: Used for digging out tree stumps, roots, and large bushes.

working size
Maximum digging force of bucket (KN)	14.5
Maximum load (kg)	200
Maximum digging depth (mm)	2100
Maximum vertical digging depth (mm)	1850
Maximum digging height (mm)	2580
Maximum unloading height (mm)	1637
Maximum digging radius (mm)	3160
Climbing capacity (°)	30
Maximum height of bulldozer (mm)	310
Maximum depth of bulldozer (mm)	270

What’s your warranty policy?
The warranty period of our excavator is within 24 months after on board or 2000hours whichever come firs, other terms and conditions of Warranty shall be subject to “SERVICE HANDBOOK” that it supplies together with each machine. And if there are any parts faulty during warranty period,we will supply the replacement parts during one week by air under free charge.
What’s the lead time of your products?
Usually within 20 days, not including for customize products.
