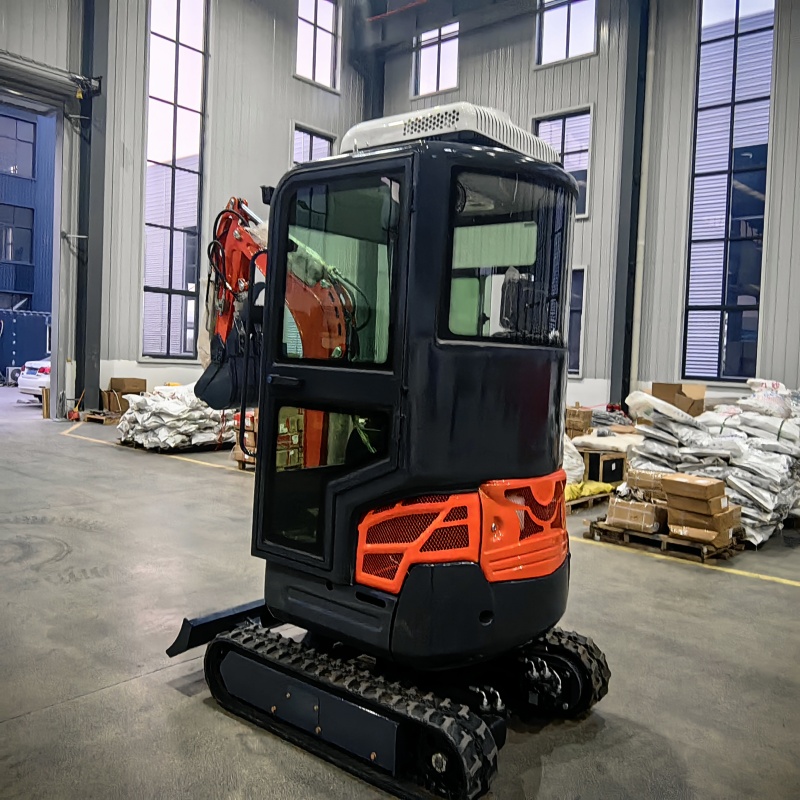

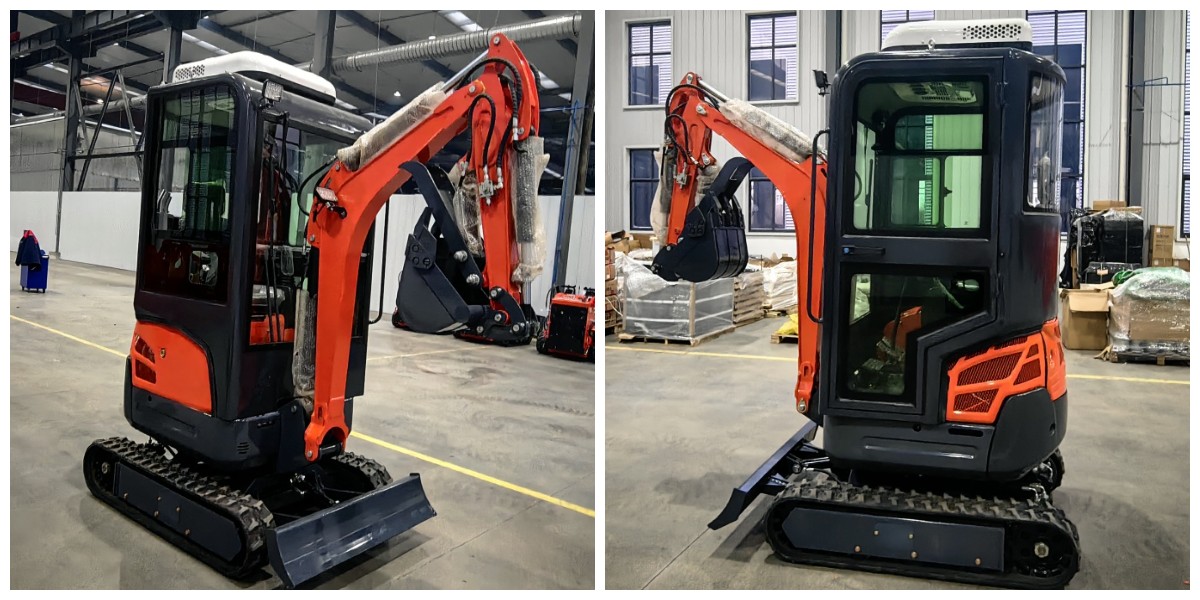

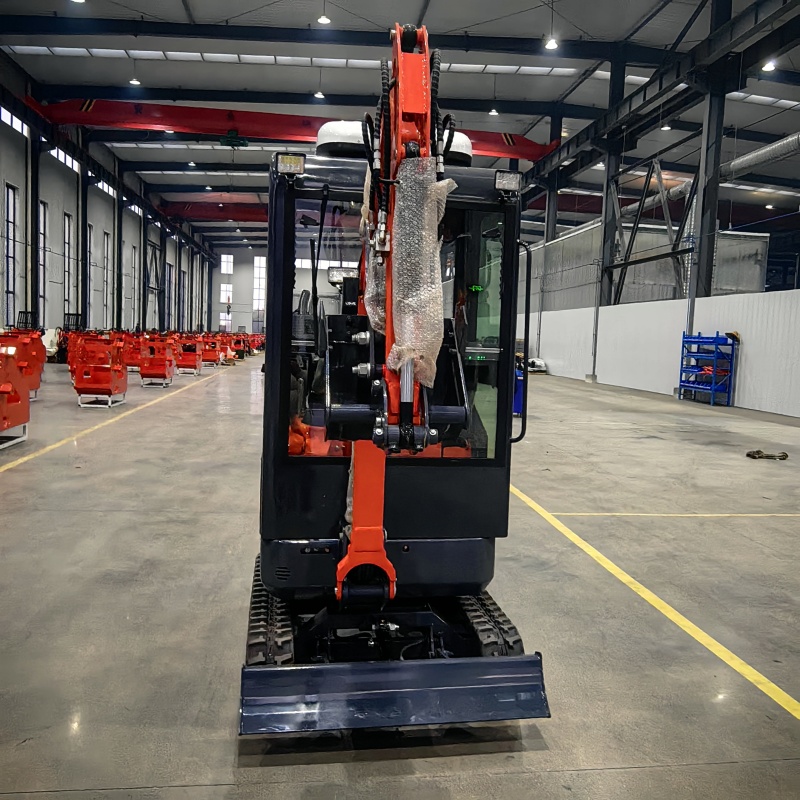

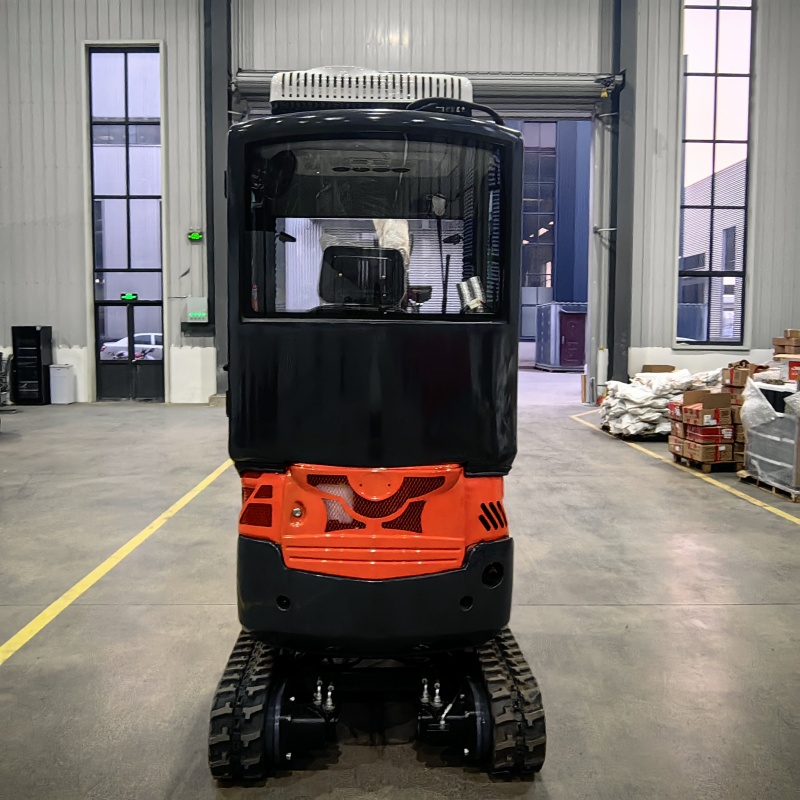

2.5 Ton Excavator Construction Machine

Road and Municipal Work:

• 2.5 Ton Excavator Construction Machine drainage systems or sewer lines in roadworks.

• Clearing and trenching for municipal infrastructure projects.

• Compact Size: Its small footprint allows it to operate in tight and restricted areas where larger equipment cannot access, such as narrow alleyways or crowded construction sites.

Maneuverability: The crawler tracks provide superior traction, and with a zero-tail swing (on some models), it can rotate fully within its own dimensions, making it ideal for congested sites.

Stability: Crawler tracks enhance stability, even on rough or soft ground, reducing the risk of tipping compared to wheeled models.

Cost-Effective: Compared to larger equipment, the 2.5-ton mini track digger offers lower operating costs, including fuel, maintenance, and transport, making it an affordable solution for small to medium projects.

walking system
Model
Type	Cycloid motor
Gear	First gear
Function of oil unloading	None
Track material	Rubber
Track width (mm)	180
Pitch of track (mm)	72
Number of track sections	41
Number of supporting wheels	2

Airframe Configuration
Roof form	Four-legged shed
Cabin heat insulation foam	Upper engine
Boom hydraulic pipe routing	Internal alignment
Boom cylinder mounting position	Big arm upper side inverted
Fuel filling position	Right side leg
Hydraulic oil filling position	Right side leaning leg
Cabin door opening method	Upper side seat forward
Chassis hook	Without hook
Throttle valve	With throttle
Seat armrests	without armrest
Seat belts	with
Anti-slip feet	with
Rubber skid cover for operating rod	Digging lever
Material of hydraulic pipe of big arm	Hose
Hydraulic Oil Heat Dissipation	with hydraulic oil cooling
Engine cooling	with water cooling

Versatility: With a wide range of available attachments, the mini digger can be used for various tasks, from digging to demolition, grading, and material handling.
