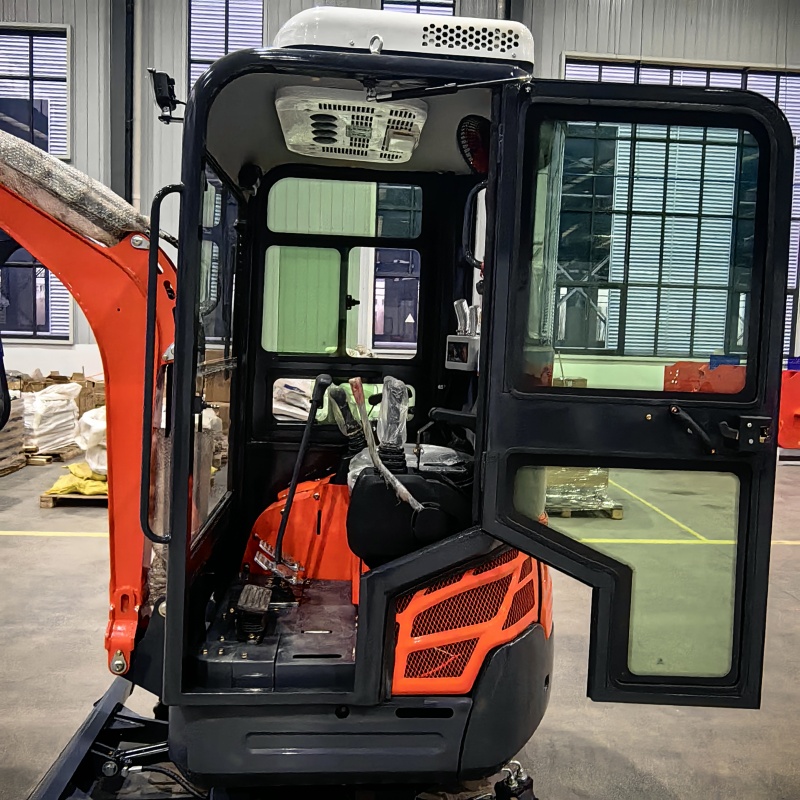

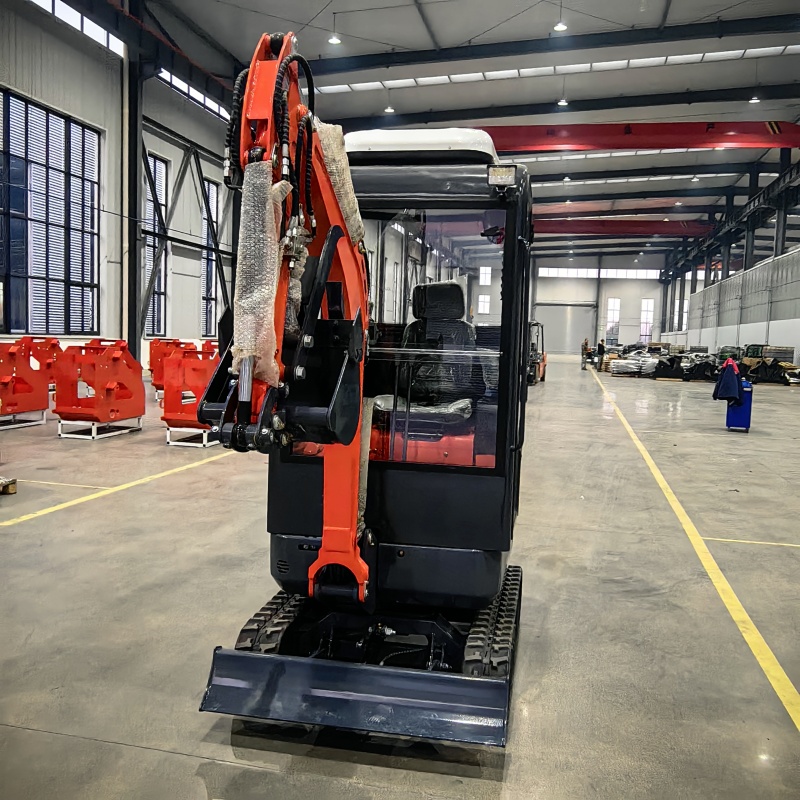

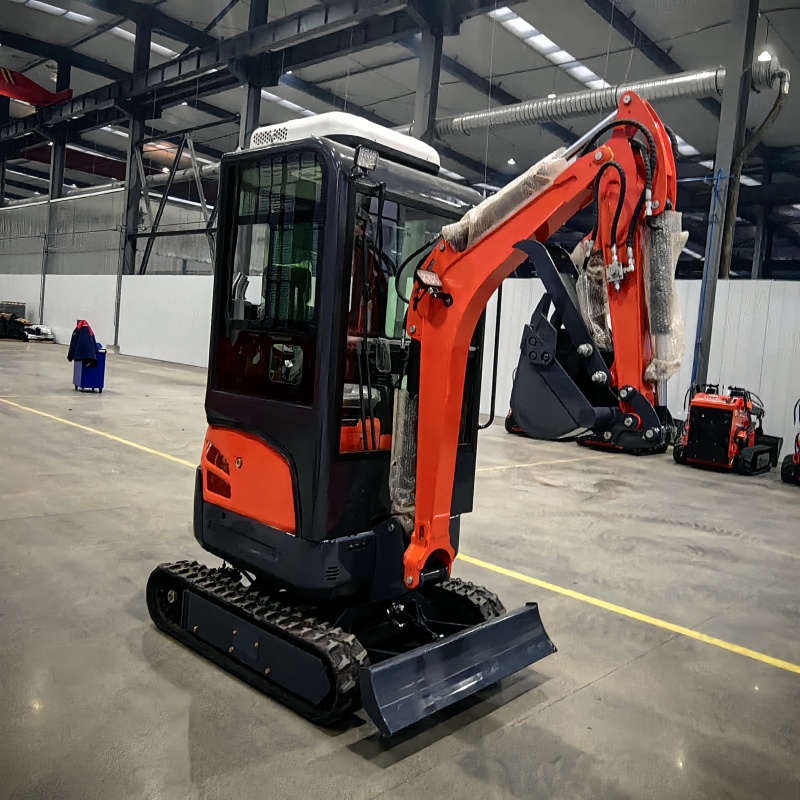

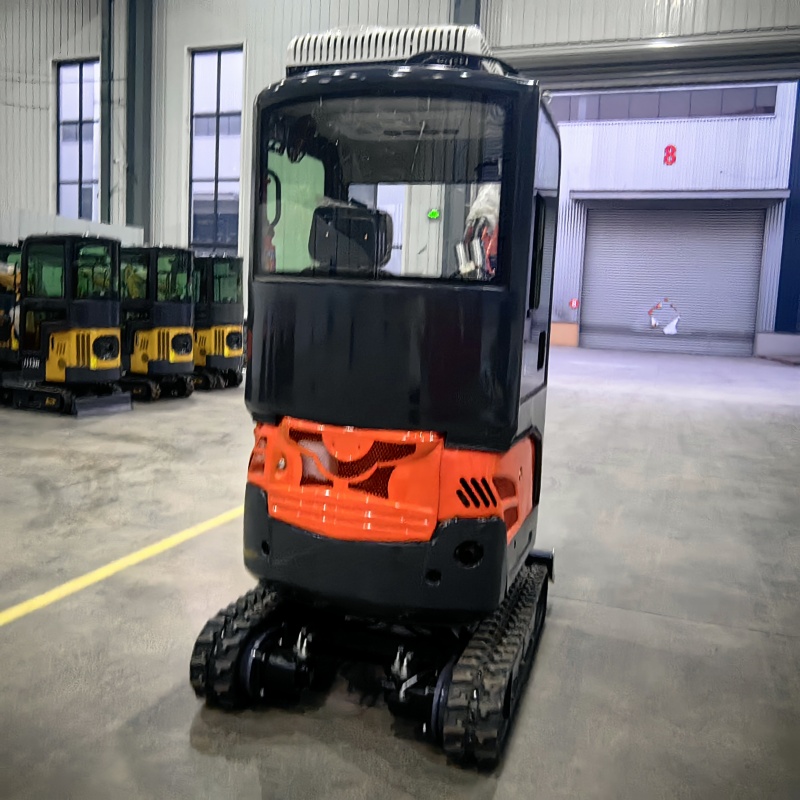

2.5 Ton Mini Track Digger

Low Ground Pressure: Rubber tracks or narrow steel tracks help distribute the machine's weight evenly, reducing ground pressure and minimizing impact on surfaces.

Efficient Power-to-Weight Ratio: Offers good performance for light-to-medium digging and excavation tasks while remaining fuel-efficient.

Contact Now Telephone WhatsApp

Product Details

Versatile: 2.5 Ton Mini Track Digger with compatible attachments, it can be used for trenching, digging, lifting, material handling, demolition, and more.

2.5 Ton Mini Track Digger

Packaging
Packaging	Wooden box
Net weight of product(kg)	1350
Gross weight with wooden case (kg) Wooden case weight 150kg	1500
Running weight (kg) (net weight + load)	1470

Product Information
Product net weight (kg)	1800kg
Maximum load (kg)	120
Color	Orange + Black
Maximum traveling speed (km/h)	2.5-3
Rated slewing speed (rpm)	8-14
Fuel tank capacity (L)	19
Hydraulic oil tank capacity (L)	16.5
Fuel consumption (L/h)	1L/h
Side Swing Angle	Yes
Chassis telescopic function	No such function
Sunshade way	Four-legged shed

This feature makes them especially suitable for trenching and digging operations where precision and accessibility are paramount. Overall, the combination of an appropriately sized bucket and an extendable arm provides operators with the capability to tackle a range of excavation projects efficiently.

Engine
Engine Model	Kubota D722
Engine power (hp)	13.8hp
Rated speed (rpm)	2600
Engine type	Water-cooled four-stroke
Displacement (CC)	719
Engine Cylinder Form	Inline three-cylinder
Engine Bore (mm)	67
Engine Stroke (mm)	68
Engine oil capacity (L)	3.8
Engine net weight (kg)	63
Rated torque (N.m)	45@2600rpm
Fuel type	Diesel
Oil type	Refer to engine manual
Cooling type	Water-cooled
Emission standard	EPA

Control system
Controls	Hydraulic pilot type on both sides
Chronographs	Yes
Voltmeter	Yes
Battery Voltage (V)	12
Battery Capacity (AH)	45
Battery Size (mm)	238130200+20 (column height 20)
Battery Weight (kg)	12
Battery Positive Terminal Diameter (mm)	19
Battery Negative Terminal Diameter (mm)	17
Maximum starting current (A)	380

When it comes to track types, two main options are prevalent in various applications: rubber tracks and steel tracks. Rubber tracks are typically favored for their ability to minimize surface damage, making them ideal for use on delicate terrains, such as lawns, driveways, or other sensitive surfaces.

Main Pump
Main Pump Model
Main pump type	Duplex Gear Pumps
Rated pressure of main pump (Mpa)	18
Maximum pressure of main pump (Mpa)	25
Nominal flow rate of main pump (ml/r)	10+3
Hydraulic oil type	46#Anti-wear hydraulic oil
Main pump flow rate (L/min)	39L/min@3000rpm
multicircuit valve
Model	8-Link Liquid Control
Rated pressure of main pump (Mpa)	17.5

These tracks provide excellent traction and are quieter during operation, making them suitable for environments where noise reduction is crucial.

walking system
Model
Type	Cycloid motor
Gear	First gear
Function of oil unloading	None
Track material	Rubber
Track width (mm)	180
Pitch of track (mm)	72
Number of track sections	41
Number of supporting wheels	2

Airframe Configuration
Roof form	Four-legged shed
Cabin heat insulation foam	Upper engine
Boom hydraulic pipe routing	Internal alignment
Boom cylinder mounting position	Big arm upper side inverted
Fuel filling position	Right side leg
Hydraulic oil filling position	Right side leaning leg
Cabin door opening method	Upper side seat forward
Chassis hook	Without hook
Throttle valve	With throttle
Seat armrests	without armrest
Seat belts	with
Anti-slip feet	with
Rubber skid cover for operating rod	Digging lever
Material of hydraulic pipe of big arm	Hose
Hydraulic Oil Heat Dissipation	with hydraulic oil cooling
Engine cooling	with water cooling

On the other hand, steel tracks are designed for rougher and more challenging terrains. They offer superior durability and can withstand harsher conditions, such as rocky or uneven surfaces.

Adaptability of aids
Attachment link shaft diameter (mm)	25
Width of small arm end (mm)	90
Specification of reserved hydraulic connector	M16 male thread
Number of reserved hydraulic joints	2
Thumb Clamp Adaptation Form	Upper Single Hole Style
Outer width of mounting on the thumb clamp of small arm (mm)	47
Thumb clamp upper mounting hole opening distance (mm)	27
Small arm thumb clamp lower mounting hole width (mm)	90
Diameter of small arm thumb clamp hole (mm)	25.5

Vehicle Specifications
Maximum length (mm)	4325
Bulldozer width (mm)	1100
Overall width (mm) (both sides of chassis hook)	1100
Overall track width (mm)	1000
Overall height cab top (mm)	2272
Track distance (mm)	920
Track length to ground (mm)	1050
Track Length (mm)	1545
Standard (single) track width (mm)	180
Swivel platform ground clearance (mm)	375
Traveling Minimum Ground Clearance (mm)	98
Minimum turning radius (mm)	1711
Standard bucket volume (m3)	0.025
Standard bucket width (mm)	400

Steel tracks provide enhanced grip and stability, making them the preferred choice for heavy-duty machinery operating in construction, mining, or forestry environments.

working size
Maximum digging force of bucket (KN)	14.5
Maximum load (kg)	200
Maximum digging depth (mm)	2100
Maximum vertical digging depth (mm)	1850
Maximum digging height (mm)	2580
Maximum unloading height (mm)	1637
Maximum digging radius (mm)	3160
Climbing capacity (°)	30
Maximum height of bulldozer (mm)	310
Maximum depth of bulldozer (mm)	270

Ultimately, the choice between rubber and steel tracks will depend on the specific needs of the job at hand, taking into consideration factors like terrain type, potential surface damage, and the load requirements of the equipment being used.
