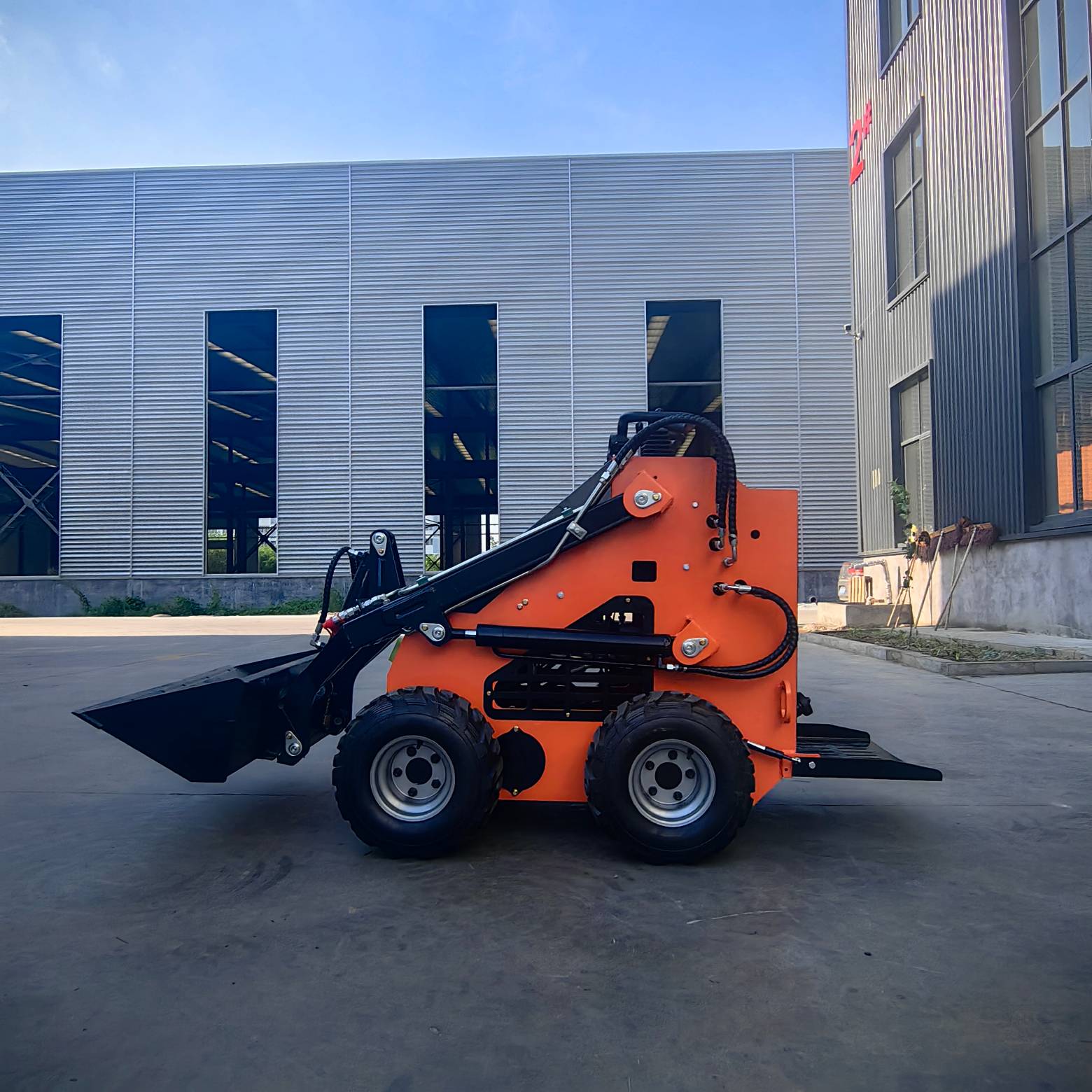

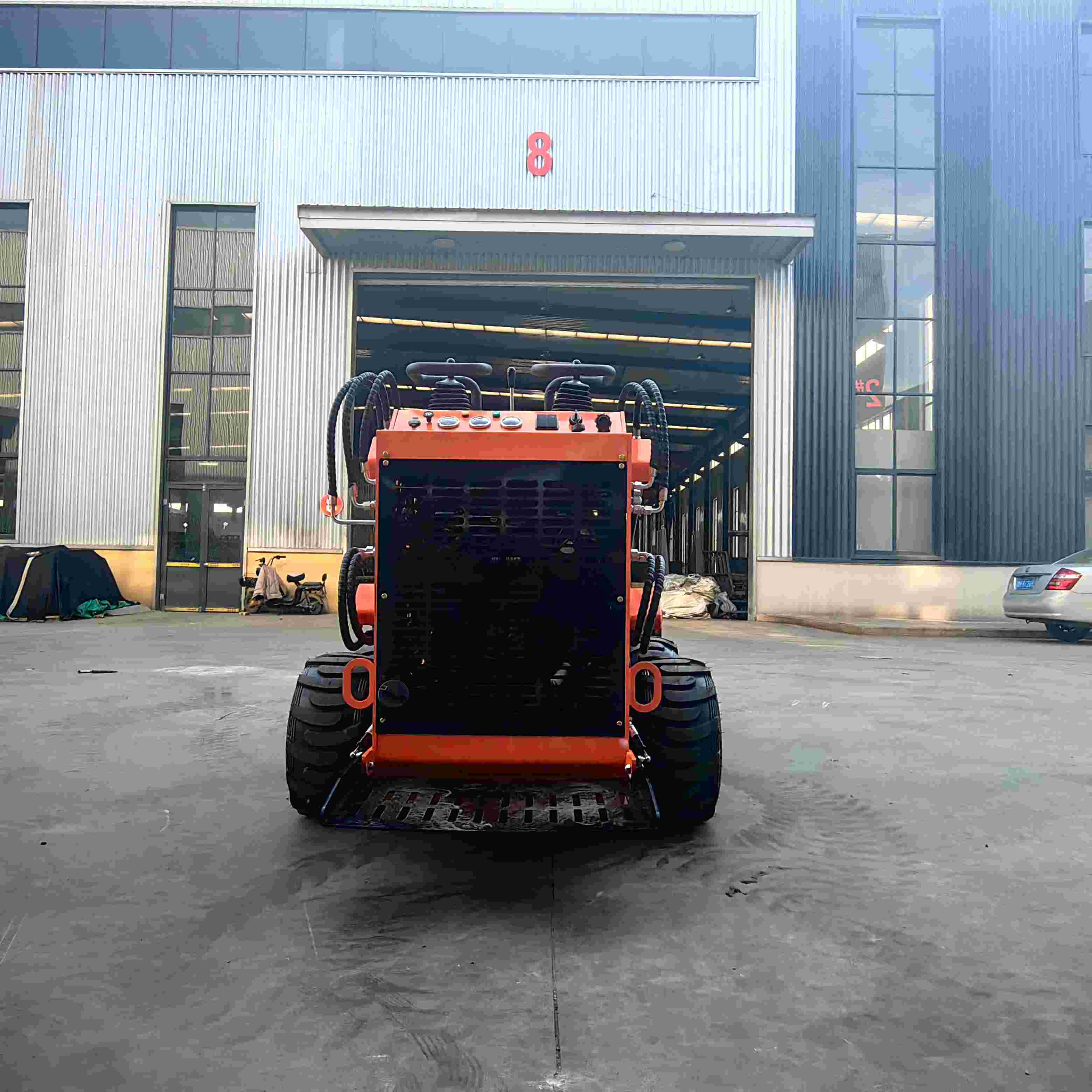

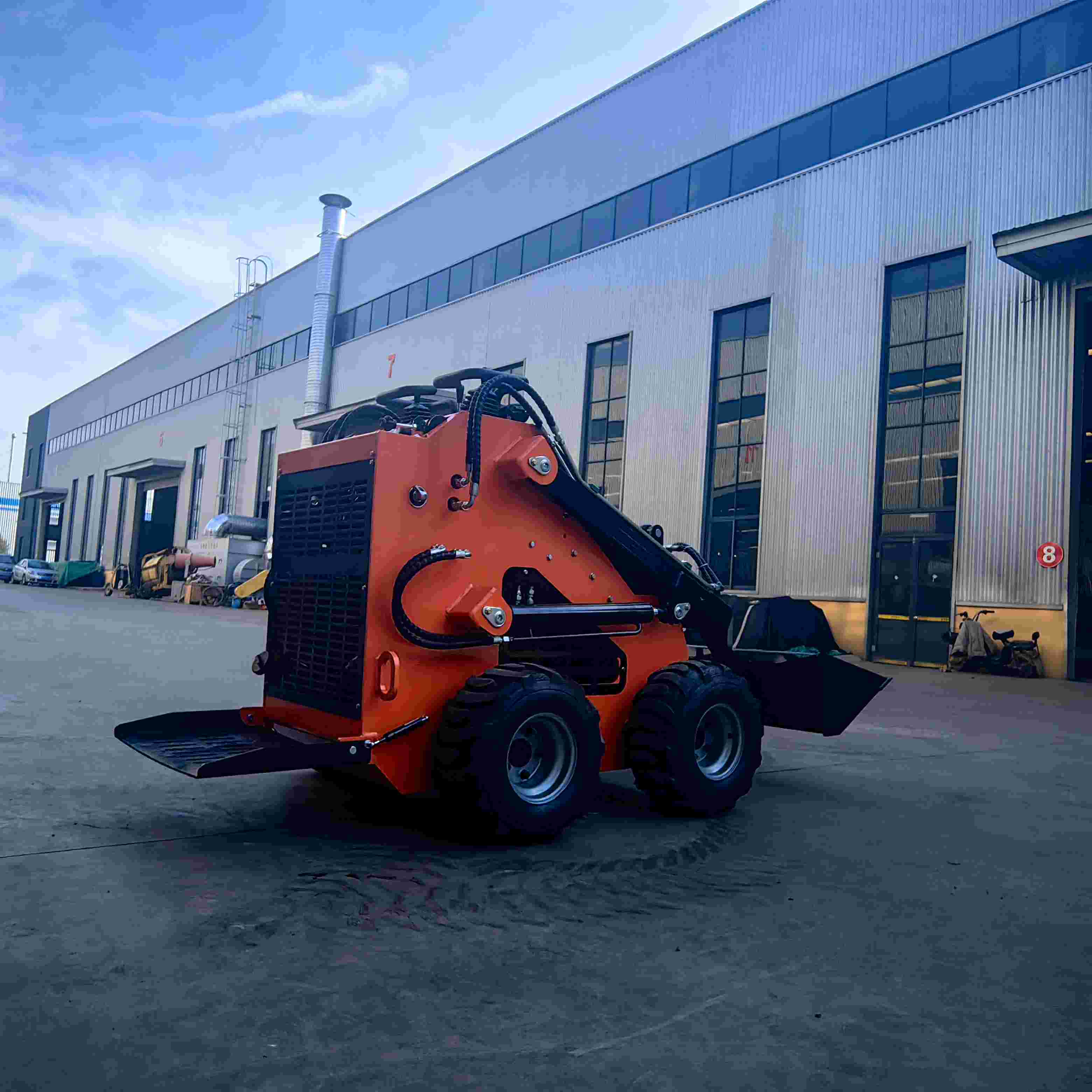

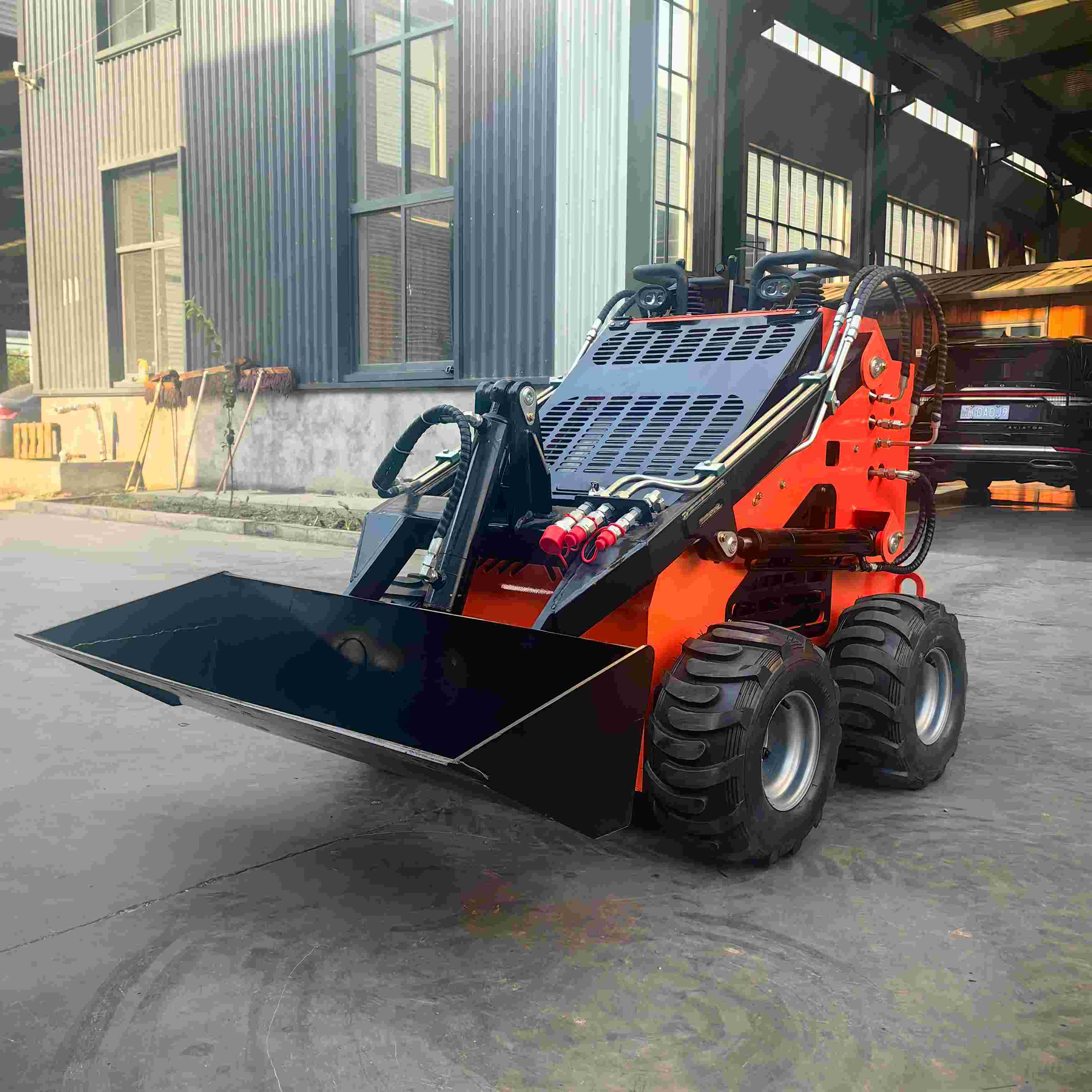

Compact Skid Loader

1.Compact and Agile: Small size for easy maneuvering in tight spaces, ideal for urban and small-site work.

2.Powerful Performance: Strong lifting capacity and efficiency for various tasks like digging and material handling.

3.Versatile Attachments: Compatible with many attachments, enabling tasks like grading, snow removal, and landscaping.

4.Easy Maneuverability: Skid-steer drive offers precise control and excellent turning ability in confined areas.

5.Fuel-Efficient: Fuel-efficient engine reduces operating costs and extends work hours per tank.

Contact Now Telephone WhatsApp

Product Details

Introduction of the product

The mini wheeled skid-steer loader is a versatile, compact machine designed to deliver outstanding performance in a wide range of applications. With its small footprint and powerful engine, it is ideal for working in tight spaces such as urban construction sites, residential areas, and landscaping projects. Its agile maneuverability, combined with a skid-steer drive system, allows for precise control and effortless navigation around obstacles, making it perfect for confined areas.

Equipped with a variety of compatible attachments, the mini skid-steer loader is highly adaptable, capable of handling tasks like digging, lifting, grading, snow removal, and material handling. Its fuel-efficient engine ensures lower operating costs, while its durable construction ensures long-lasting reliability even in tough working conditions. Designed with operator comfort in mind, the cabin provides excellent visibility and ergonomic controls to minimize fatigue and increase productivity.

Whether you're clearing debris, lifting materials, or performing light excavation, the mini wheeled skid-steer loader is an efficient and cost-effective solution for various industries, from construction to agriculture.

Compact Skid Loader

Parameter

Item Name	380
Working weight of the whole machine(kg)	870
Bucket capacity(m³).	0.12
Traveling speed(Km/h)	3
Max. lifting force(Kg).	220
Max. working height(mm).	2235
Maximum unloading height(mm).	1340
Bucket discharge angle	25
Wheelbase H(mm) ::.	780
Engine model	Brighton
Maximum flow rate of spare fuel line(L/min)	65
Horsepower hp	23
Nominal speed rpm	3600
Main pump type/model.	Gear pumps
Maximum flow rate of main pump(L/min).	65
Multi-way valve	2-way + 3-way manual valves
Traveling hydraulic motor type.	Cycloidal motors
Motor displacement(ml)	375
Rubber(bandwidthpitchnumber of sections).	1807237
Tensioning type	Hydraulic tensioning
Total length(mm)	2250
Total width(mm).	1100
Total Height(mm).	1260

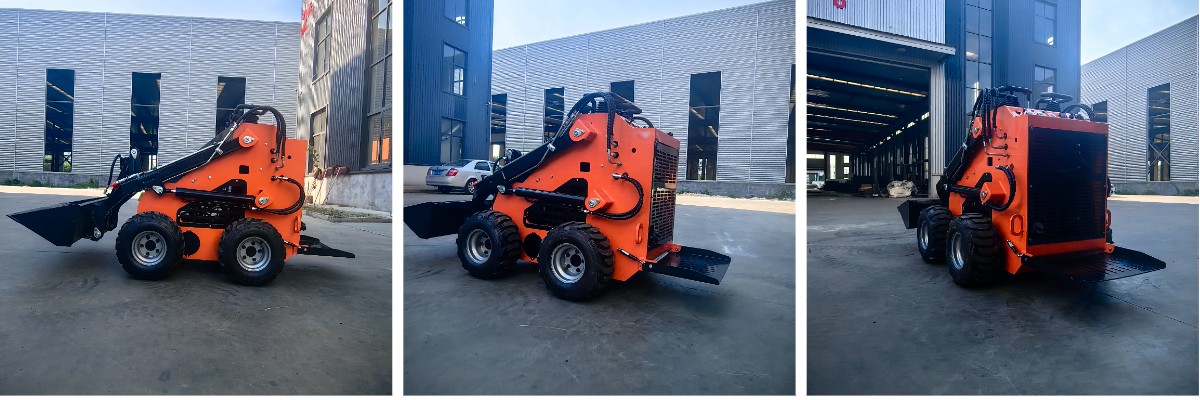

Product Detailed Drawing

Compact Skid Loader

Company Profile

Qingdao Panda Machinery Co., Ltd. is located at Room 128, Building 1, No. 61, Yuting Road, Liuting Street, Chengyang District, Qingdao City, Shandong Province.

Covering an area of 10,000 square meters, the company is recognized as a national high-tech enterprise with full import and export rights. It has a workforce of 150 employees, including 20 engineers, 5 senior engineers, and 25 senior technicians. The company holds several certifications, including ISO 9001 for quality management, CE certification for the European Union, Euro 5 emission standards, EPA compliance, and Australian cab rollover safety standards. Its products are highly regarded in both the domestic and international markets, with exports to Southeast Asia, the Americas, Europe, and the Middle East. The R&D team has developed a range of models tailored to the needs of the American, Canadian, and European markets and holds multiple design patents. Additionally, the company offers OEM services.
