Track Loader Mini Crawler Loader Skid

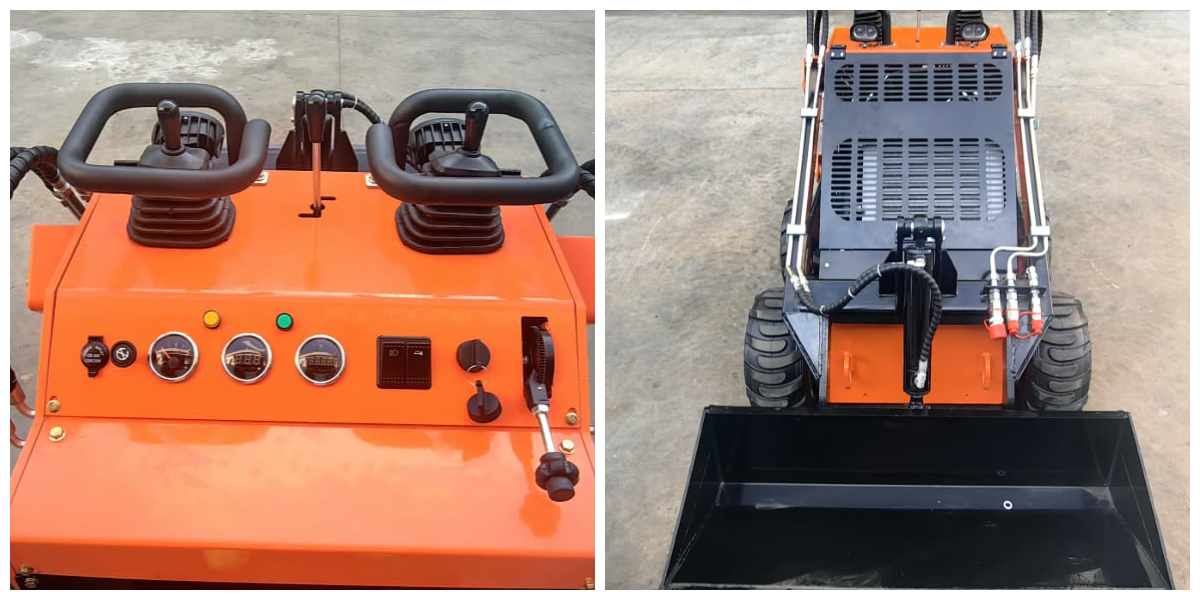

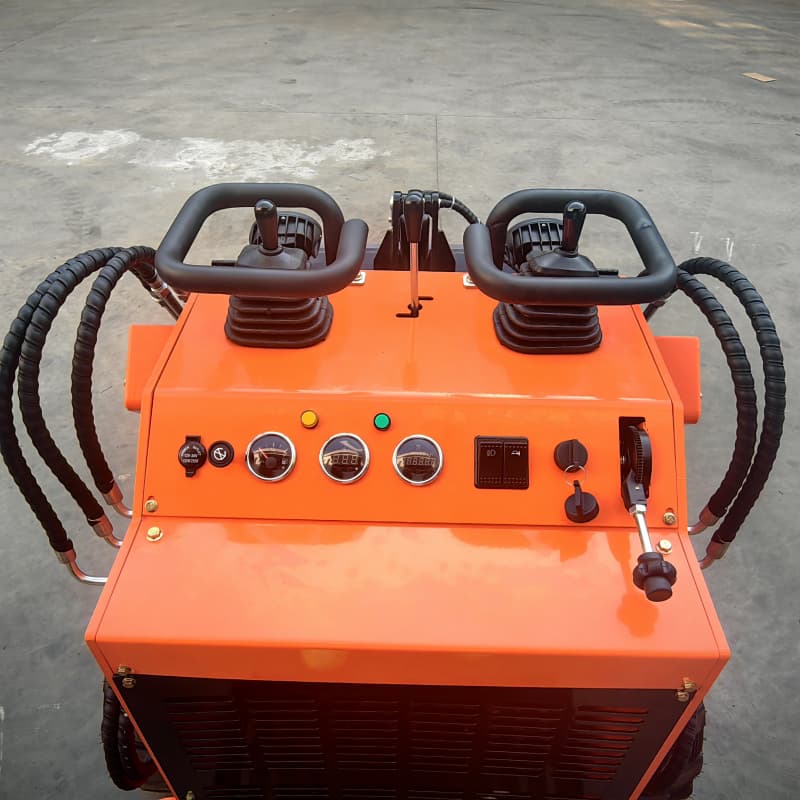

Joystick or pedal controls for smooth and intuitive operation.

Designed for ease of use with responsive steering and control systems.

Contact Now Telephone WhatsApp

Product Details

Some models offer Track Loader Mini Crawler Loader Skid for protection against weather elements, with heating and air conditioning.
Open cabs are available for lighter operations where operator protection from weather is less critical.

Track Loader Mini Crawler Loader Skid

The direct diesel engine provides excellent fuel efficiency, allowing the machine to run longer hours on a single tank, making it cost-effective for extended operations.

Diesel engines generally have a longer lifespan and require less frequent maintenance compared to gasoline engines, reducing overall maintenance costs.

Track Loader Mini Crawler Loader Skid

Item Name	380
Working weight of the whole machine(kg)	870
Bucket capacity(m³).	0.12
Traveling speed(Km/h)	3
Max. lifting force(Kg).	220
Max. working height(mm).	2235
Maximum unloading height(mm).	1340
Bucket discharge angle	25
Wheelbase H(mm) ::.	780
Engine model	Brighton
Maximum flow rate of spare fuel line(L/min)	65
Horsepower hp	23
Nominal speed rpm	3600
Main pump type/model.	Gear pumps
Maximum flow rate of main pump(L/min).	65
Multi-way valve	2-way + 3-way manual valves
Traveling hydraulic motor type.	Cycloidal motors
Motor displacement(ml)	375
Rubber(bandwidthpitchnumber of sections).	1807237
Tensioning type	Hydraulic tensioning
Total length(mm)	2250
Total width(mm).	1100
Total Height(mm).	1260
